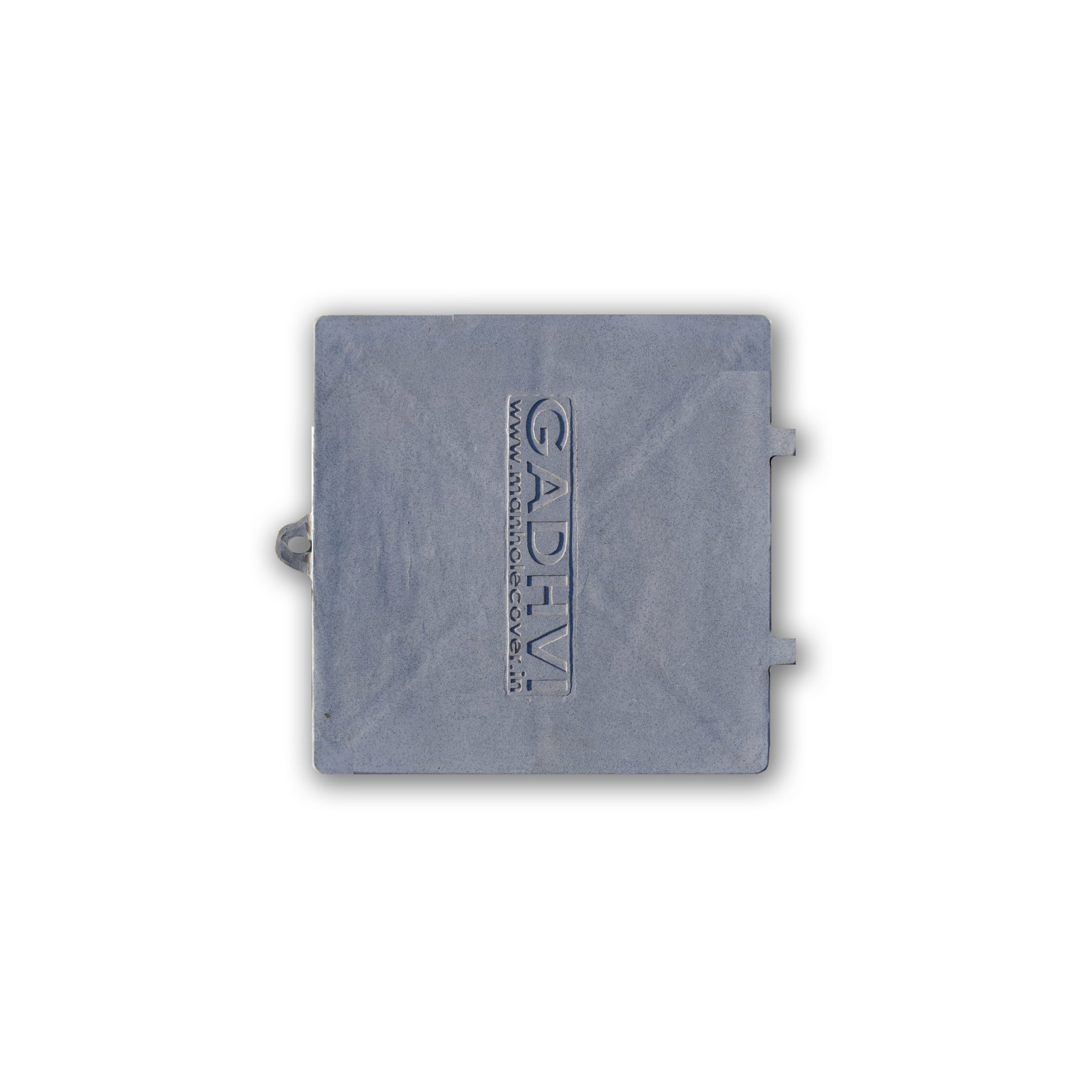

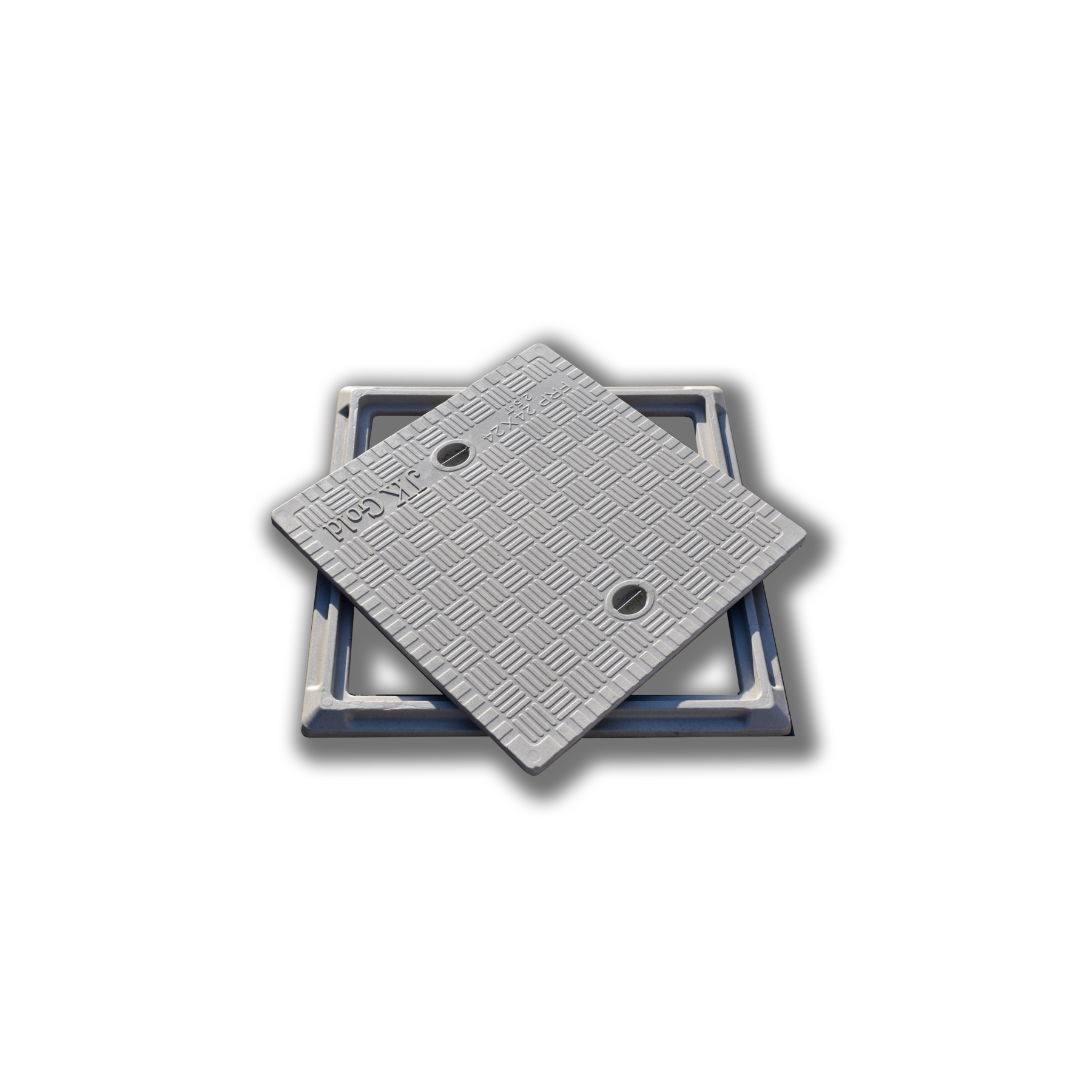

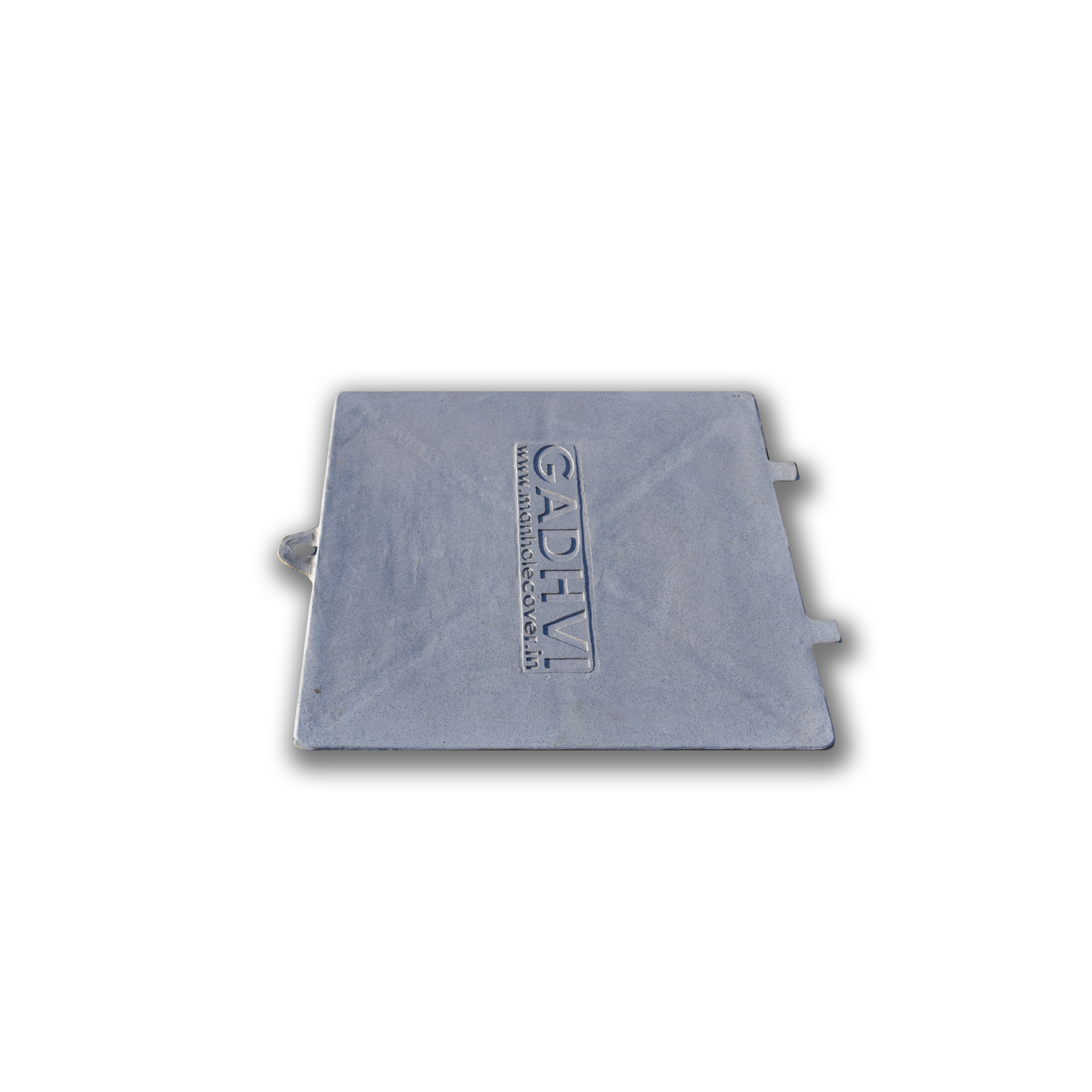

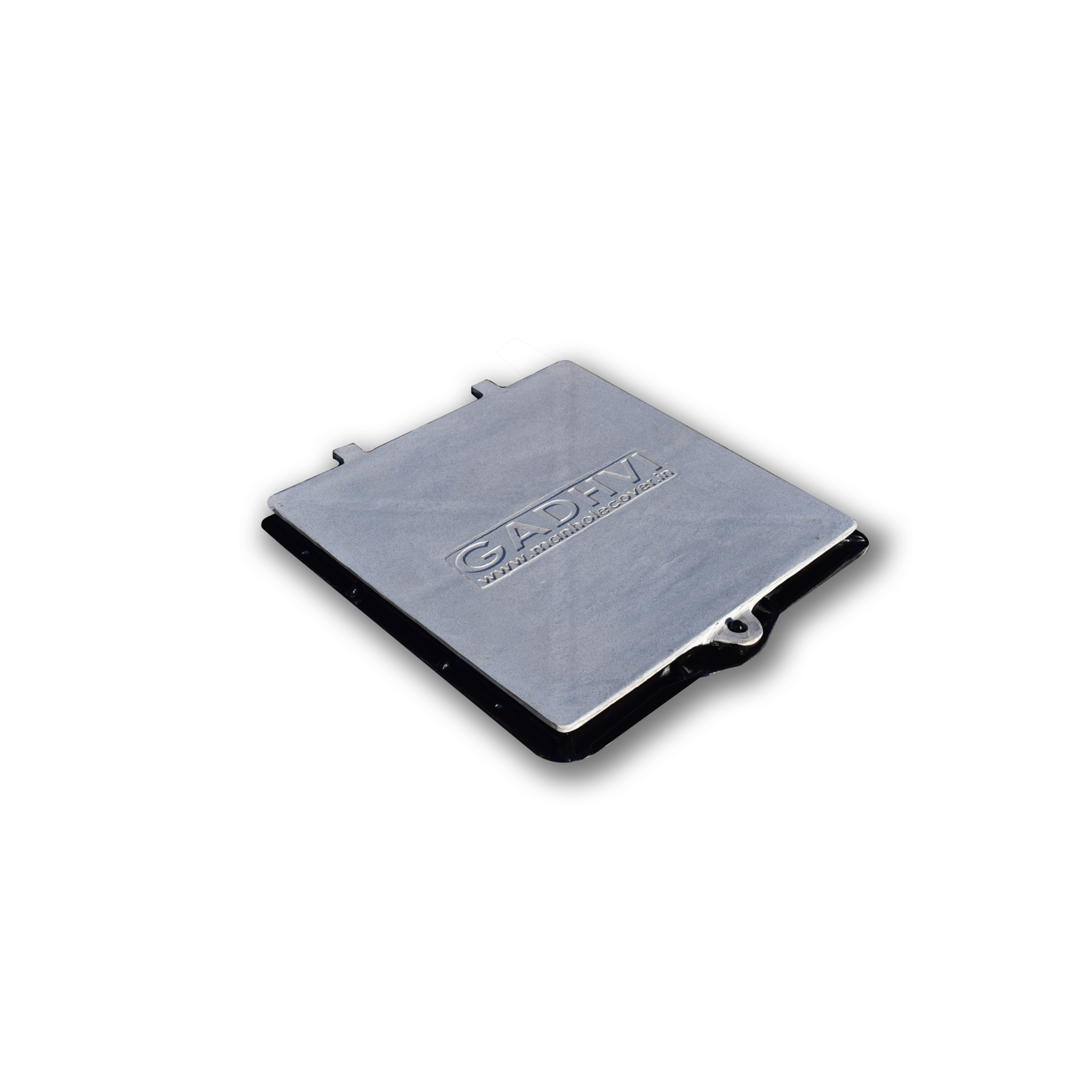

frp Manhole Frame & Cover’s (fibre reinforced plastic)
Specifications & Qualities.
-
Frp Manhole Covers Are Available In Standard Granite Finish And Are Also Available In Any Other Colour Specified By Client.
-
Load capacity: 2.5 to 40 Tons.
-
High Strength to Weight Ratio.
-
No Scrap Value Hence No Theft.
-
Light Weight - Easy To Handle.
-
Material Has High Impact Resistance Hence Doesn't Crack On Impact.
-
Corrosion Resistant, No Effect of Sea / Sewage Water.
-
High Aesthetic Value.
| Load Capacity. | Shape | Frame size | Clear Opening | weight/ piece |
pack size | ||
|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | ||||
| 2.5 Ton | SQUARE | 10 x 10 | 250 x 250 | 7.8 x 7.8 | 195 x 195 | 2 kg | 13 |
| 12 x 12 | 300 x 300 | 10 x 10 | 250 x 250 | 3.15 kg | 13 | ||
| 15 x 15 | 380 x 380 | 12 x 12 | 300 x 300 | 4.6 kg | 11 | ||
| 18 x 18 | 450 x 450 | 16 x 16 | 400 x 400 | 6 kg | 8 | ||
| 21 x 21 | 535 x 535 | 18 x 18 | 450 x 450 | 9 kg | 3 | ||
| 24 x 24 | 600 x 600 | 20 x 20 | 510 x 510 | 13 kg | 3 | ||
| 28 x 28 | 710 x 710 | 24 x 24 | 610 x 610 | 23 kg | 1 | ||
| 30 x 30 | 760 x 760 | 26 x 26 | 650 x 650 | 27 kg | 1 | ||
| Rectangle | 18 x 24 | 450 x 450 | 14 x 20 | 350 x 510 | 10 kg | 5 | |
| 5 Ton | SQUARE | 10 x 10 | 250 x 250 | 7.8 x 7.8 | 195 x 195 | 2 kg | 13 |
| 12 x 12 | 300 x 300 | 10 x 10 | 250 x 250 | 3.15 kg | 13 | ||
| 15 x 15 | 380 x 380 | 12 x 12 | 300 x 300 | 4.6 kg | 11 | ||
| 18 x 18 | 450 x 450 | 16 x 16 | 400 x 400 | 6 kg | 8 | ||
| 21 x 21 | 535 x 535 | 18 x 18 | 450 x 450 | 9 kg | 3 | ||
| 24 x 24 | 600 x 600 | 20 x 20 | 510 x 510 | 13 kg | 3 | ||
| 28 x 28 | 710 x 710 | 24 x 24 | 610 x 610 | 23 kg | 1 | ||
| 30 x 30 | 760 x 760 | 26 x 26 | 650 x 650 | 27 kg | 1 | ||
| Rectangle | 18 x 24 | 450 x 450 | 14 x 20 | 350 x 510 | 10 kg | 5 | |
